The NuFONA® X3 is designed and built to meet industrial standards, utilizing an advanced production process to deliver superior quality for stable and reliable performance. Equipped with high-performance motors, the NuFONA® X3 ensures smooth operation with minimal noise. Its ergonomic design, along with the seat and backrest-linked chair (where the seat and backrest move in sync), further enhances patient comfort.

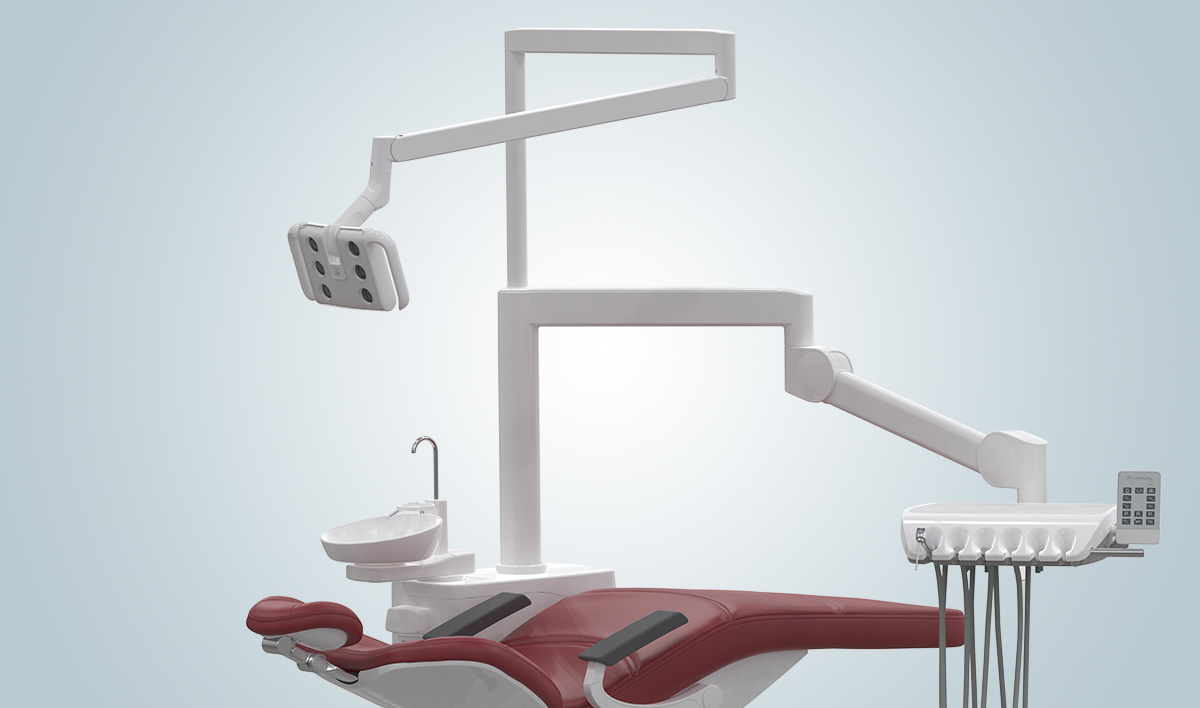

Designed and built to meet industrial standards using an advanced production process, both the instrument arm and lamp arm are constructed from aluminum profiles, offering high strength while remaining lightweight.

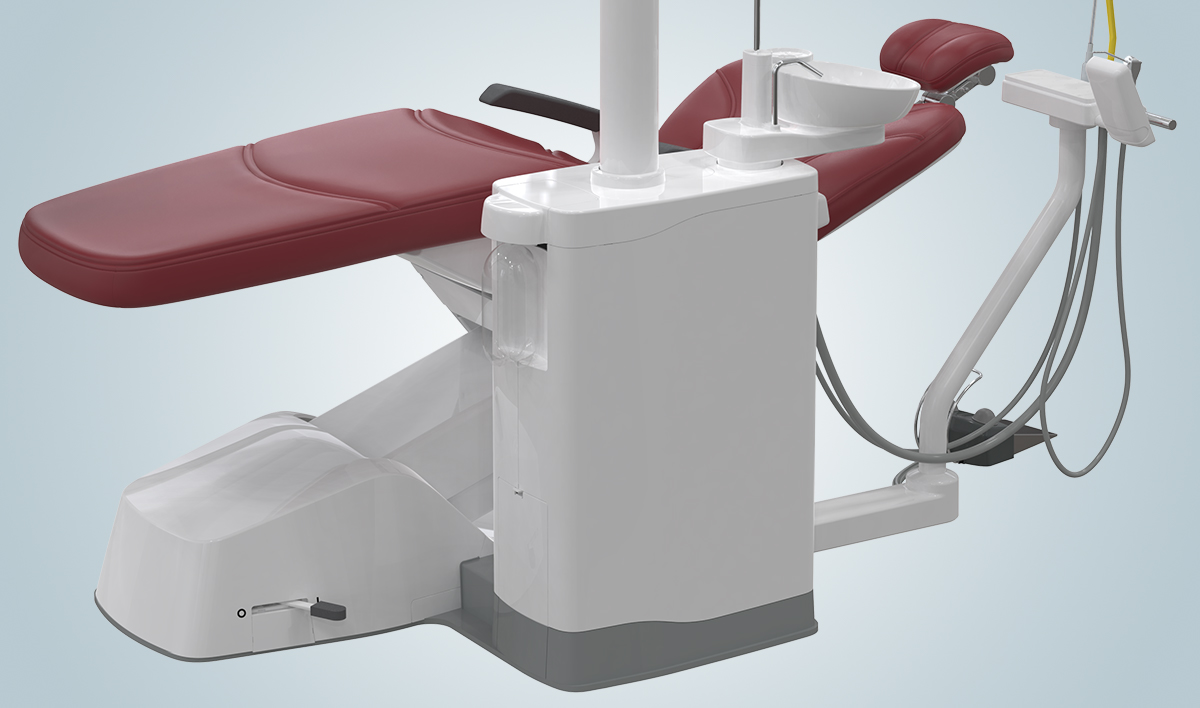

A uniquely designed floor-standing water unit greatly improves chair stability.
Synchronised seat and backrest movement enhances patient comfort. Ultra-low chair position supports easy patient access.

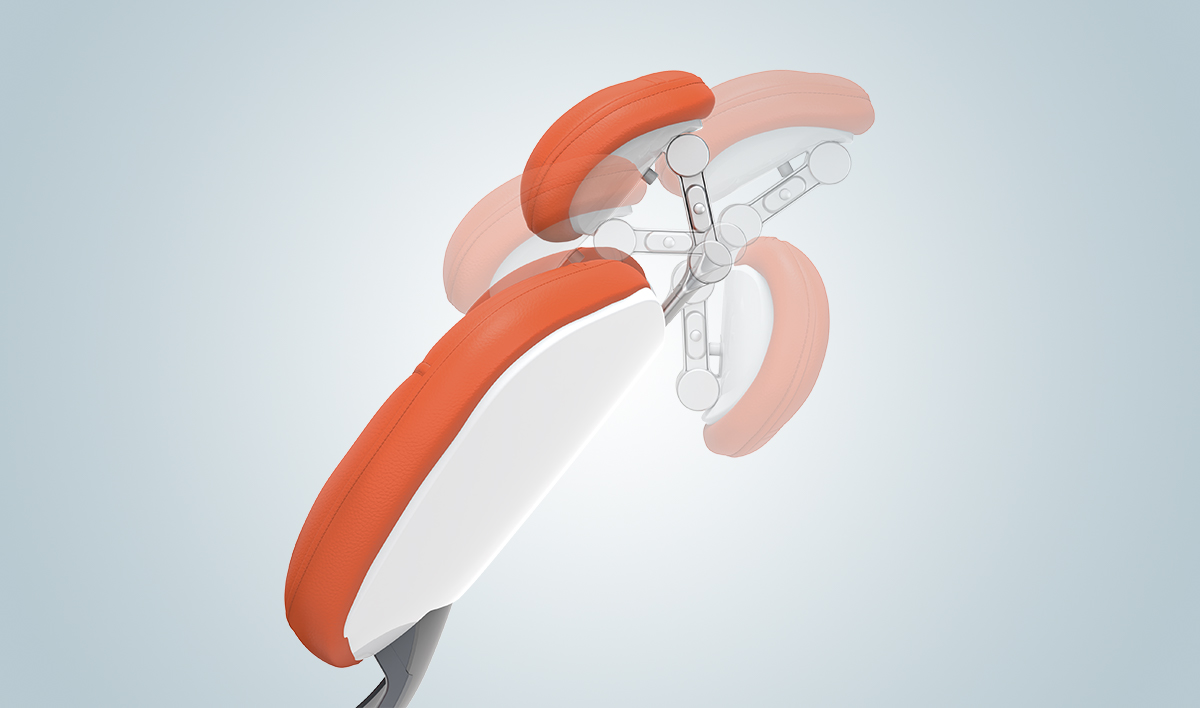

With double-articulated headrest and comfortable seat, height can be raised and lowered freely in the range from 380mm to 780mm, including the last-seat-height memory function. It can be adjusted for the elderly, pregnant women and other patients with limited mobility to recieve treatments.

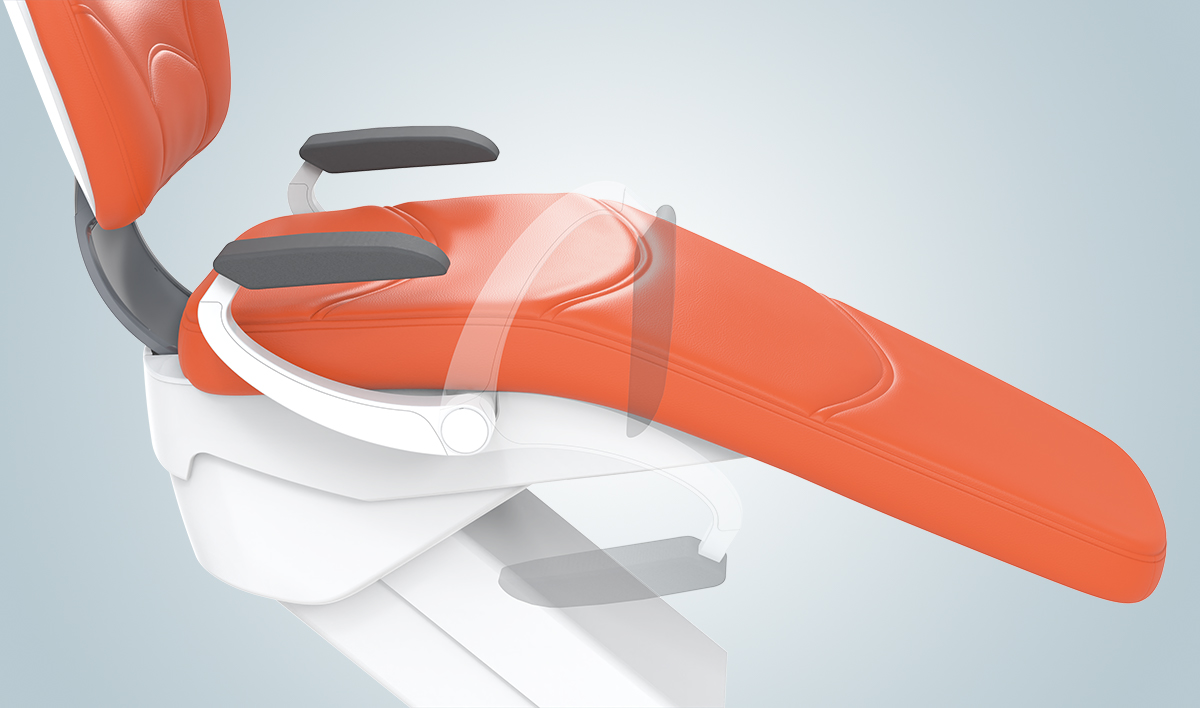

With Right armrest swings forward for easier patient access. Provides secure grip to reduce patient anxiety and improve comfort.

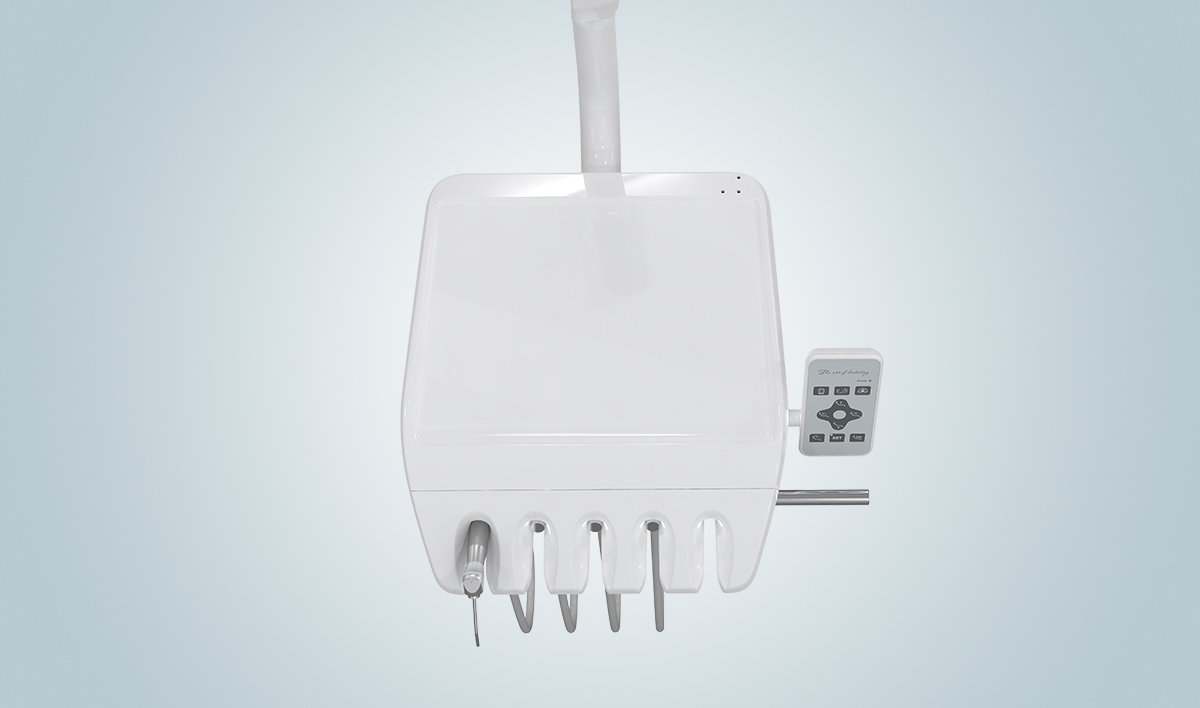

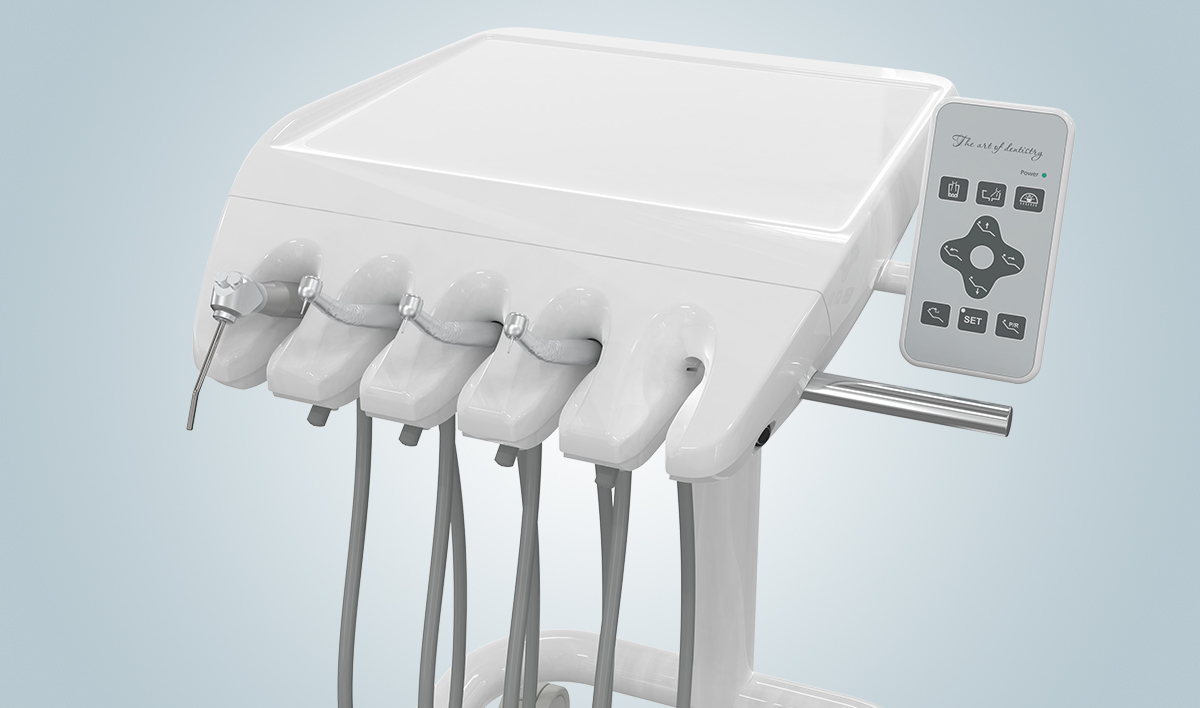

Available in both hanging hoses and continental versions. Chair-instrument interlock design supports various instruments including motors and scalers.

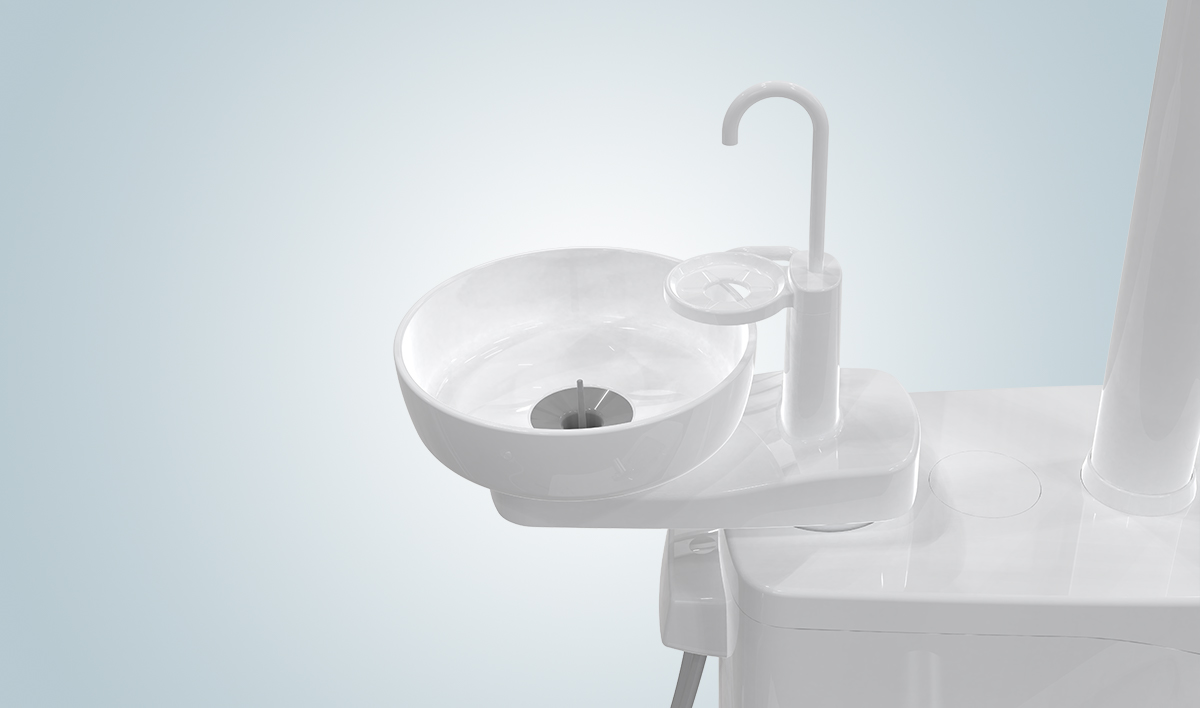

Removable suction filter kit and 360° rotatable water outlet for easy cleaning and disinfection.

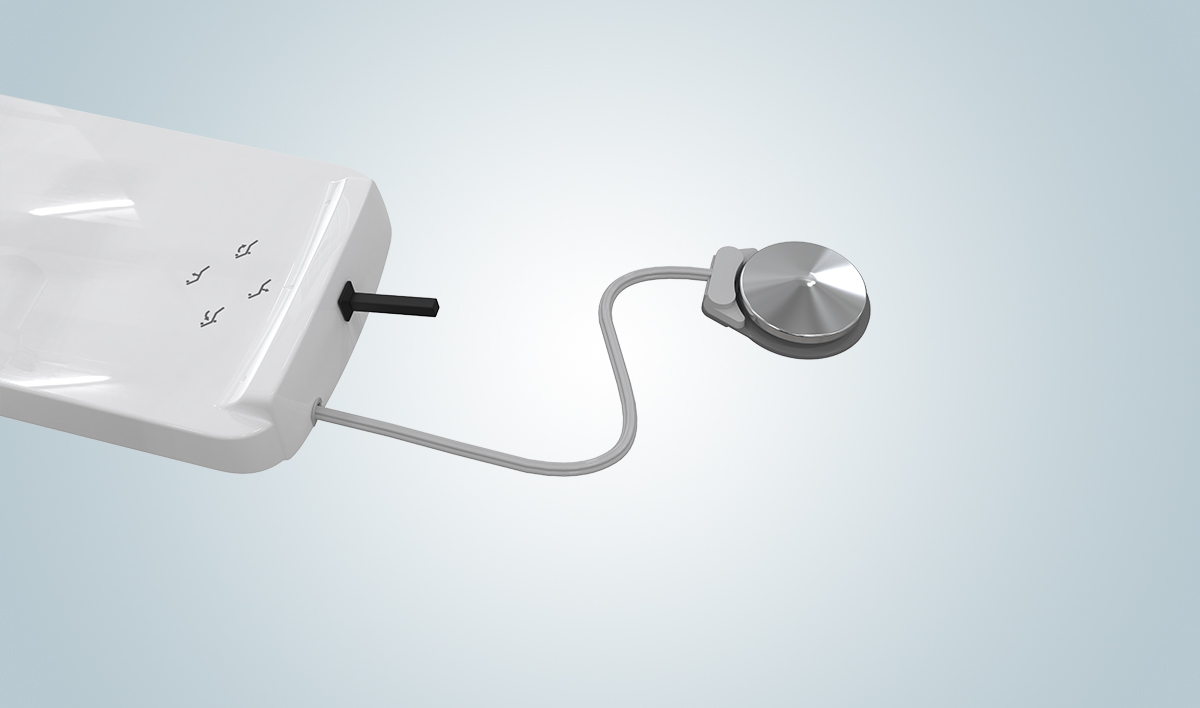

Full foot-control operation to avoid cross contamination, the seat can be adjusted handsfree.
Wide swivel cuspidor bowl and assistant element provide maximum treatment space with two installation options.
Adjustable color temperatures (measured in Kelvins) with luminance memory. Three-axis adjustment for optimal positioning. Automatically switches off when the chair moves to protect patient comfort.
Intelligent flexible backrest, ergonomic curved backrest for superior support & anti-slip seat design with thigh pressure relief.

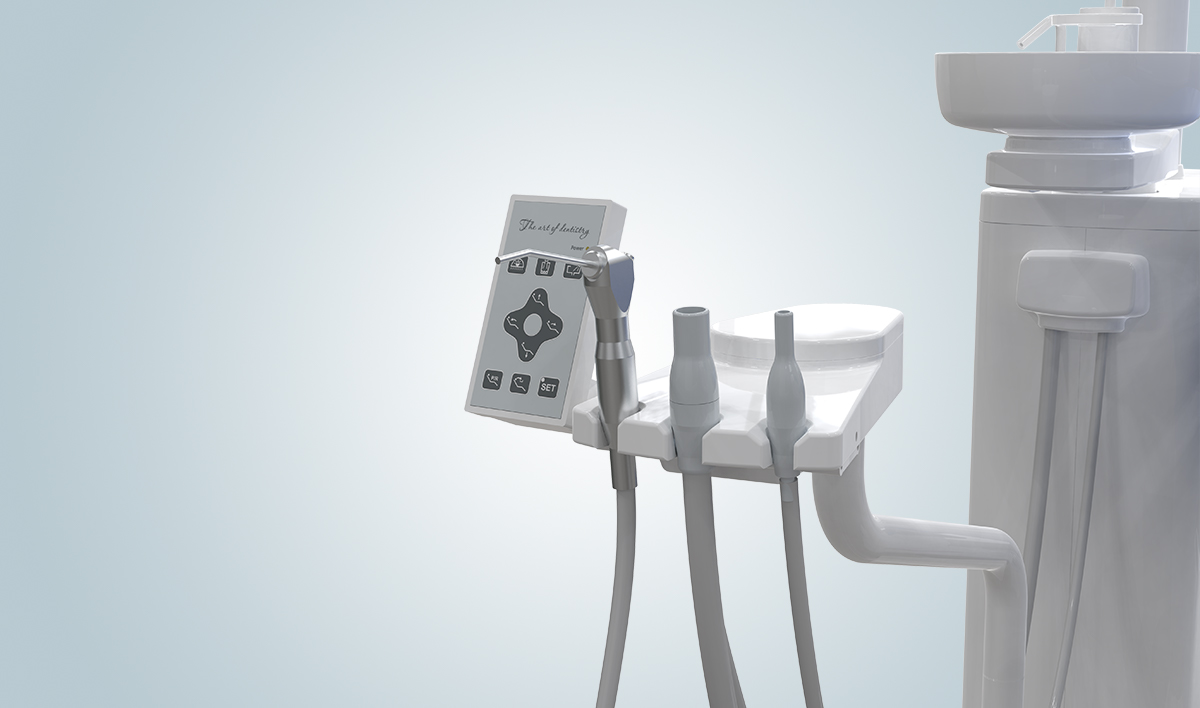

An ultrasonic scaler for scaling, perio and endo is fully integrated into the delivery system to eliminate extra wiring, tubing and foot pedal in your office. It also offers autoclavable LED lighting in the handpiece to provide 100,000 lux of white light for superior visibility.
This LED curing light will be ready to operate when you are. No need to worry about battery life.

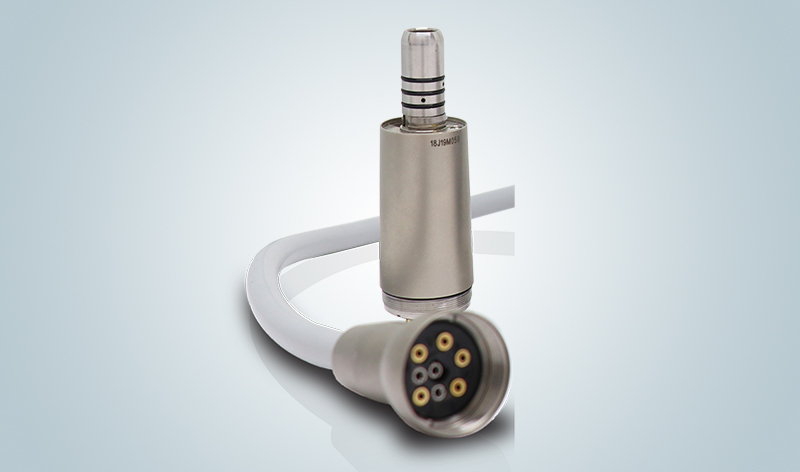

The built-in electric motor system provides an optimal electric solution for your practice, delivering constant power whenever you need it.
Install either a monitor or TV of your choice on this supportive media arm to complete your modern operatory.
A high resolution monitor is mounted directly on the light post which will enhance communication with patients.
A crystal clear intraoral camera is fully integrated into the delivery system, so your camera will always be at your fingertips. Your patients will be well-educated by seeing the images on the screen.
Our system offers a fully automatic flushing and disinfection process for all instrument hoses and suction lines. Simply connect the instruments to the hygiene holder and initiate the cleaning program — the system will automatically complete the flushing and disinfection cycle with no manual intervention required.
This solution ensures thorough internal cleaning, minimizes infection risks, and simplifies daily maintenance. The hygiene holder keeps all hoses organized and properly positioned for maximum cleaning efficiency.
Smooth and easy to clean
| Rated Voltage | 110-120V AC / 220-230V AC 60Hz/50Hz |
| Water Pressure | 0.2-0.4 MPa / 2.0-4.0 bar |
| Water Flow | ≥5 L/min |
| Air Pressure | 0.60-0.80 MPa / 6.0-8.0 bar |
| Air Consumption | 80 L/min |
| Suction machine | ≥255 L/min (with central suction) |
| Load capacity of patient’s chair | Maximum 200kg |
| Moving range of patient’s chair | 480-780mm |
*When using Venturi suction system: Water flow requirement: ≥10 L/min, Air consumption requirement: ≥130 L/min
Model: NuFONA X3 Smart 100
Code: 00000
Includes:
Model: NuFONA X3 Smart 200
Code: 00000
Includes:
Model: NuFONA X3 Smart 300
Code: 00000
Includes:
